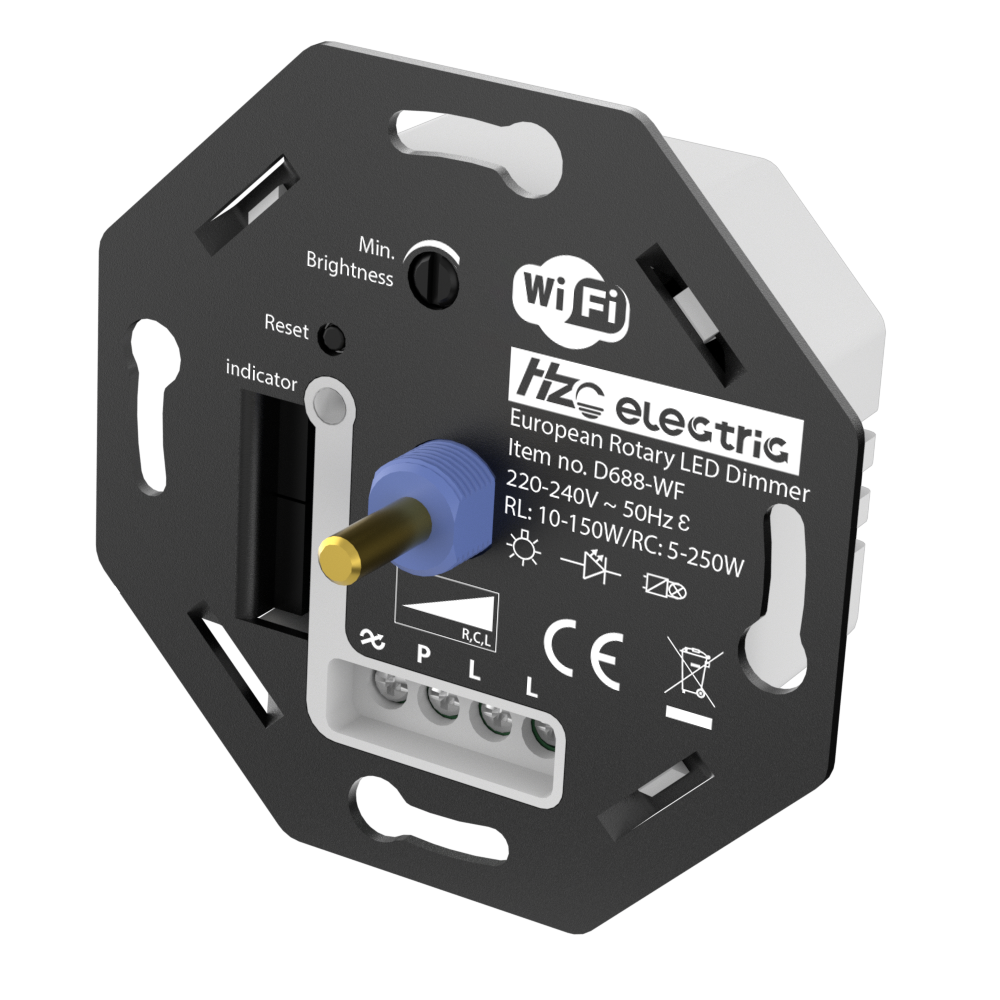

European Rotary LED Dimmer-WIFI

This smart dimmer can be connected without neutral wire providing more convenient installation for users. Besides, it's also compatible with both leading edge and trailing edge dimming mode.

Model No.		D688-WF
Description		European Rotary LED Dimmer-Wifi
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	RL: 10-150W RC: 5-250W
	Incandescent	5-250W
	Halogen	5-250W
Dimming mode		Trailing Edge & Leading Edge
Control Way		Multiway
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		64.3
Dimension(mm)		707043mm

Back to list

Model No.		D688-WF
Description		European Rotary LED Dimmer-Wifi
Input Voltage		220-240V
Input frequency		50Hz
Load	LED	RL: 10-150W RC: 5-250W
	Incandescent	5-250W
	Halogen	5-250W
Dimming mode		Trailing Edge & Leading Edge
Control Way		Multiway
Material	Heatsink	Aluminum
	Bottom Case	PC
Color		White
Weight(g)		64.3
Dimension(mm)		707043mm

/Uploads/file/20241028/20241028213724_86728.pdf

Download Center

To know further details of this product, please download the following user manual.

Potentiometer

Heat sink

Coverplate
